Stainless Steel Sheet

Stainless Steel Sheet is perfect for many kinds of applications. You can order custom-cut lengths with specific dimensions to meet your requirement. Our prices are competitive, and we offer a wide variety of sizes and thicknesses.

keyword:

dimensions competitive

Category:

Stainless steel coils and plates

Feedback

Stainless Steel Sheet

Product Specification and Size :

Product Specification and Steel Grade (For Reference)

	ASTM	JIS	AISI	EN	Mill's Standard
Grade	S30100 S30400 S30403 S31008 S31603 S32100 S41008 S43000 S43932 S44400 S44500	SUS301 SUS304 SUS304L SUS310S - SUS321 SUS410S SUS430 - SUS444 SUS430J1L	301 304 304L 310S 316L 321 410S 430 - 444 -	1.4310 1.4301 1.4307 1.4845 1.4404 1.4541 - 1.4016 1.4510 1.4521 -	201 202 204Cu3

Available Size

Width: 914~1524 mm

Thickness: 0.1~3.0 mm

Length: 300~6000 mm

Available Steel Grade: 201, 202, 204 Cu3, 301, 304, 304L, 310S, 316L, 321, 409L, 410S, 420J2, 430, 439, 441, 444, 445

Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating

Application

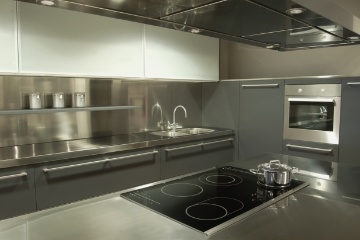

Stainless sheet is used for industrial sectors and components for processing equipment for foodservice, medical device, chemical, petrochemical and power transmission industries.

Tolerance of Width

Tolerance of Width
W < 100 mm	100 mm ≦ W < 1000 mm	1000 mm ≦ W < 1600 mm
± 0.10 mm	± 0.25 mm	± 0.30 mm

Chemical Composition & Mechanical Property

Chemical Composition (For Reference)

ASTM Specification
	Steel Grade	Ni% Max.	Cr% Max.	C% Max.	Si% Max.	Mn% Max.	P% Max.	S% Max.	Mo% Max.	Ti% Max.	Other
Spec. ASTM A240	S30100	6.0~8.0	16.0~18.0	0.15	1	2	0.045	0.03	-	-	N: 0.1 Max.
	S30400	8.0~10.5	17.5~19.5	0.07	0.75	2	0.045	0.03	-	-	N: 0.1 Max.
	S30403	8.0~12.0	17.5~19.5	0.03	0.75	2	0.045	0.03	-	-	N: 0.1 Max.
	S31008	19.0~22.0	24.0~26.0	0.08	1.5	2	0.045	0.03	-	-	-
	S31603	10.0~14.0	16.0~18.0	0.03	0.75	2	0.045	0.03	2.0~3.0	-	N: 0.1 Max.
	S32100	9.0~12.0	17.0~19.0	0.08	0.75	2	0.045	0.03	-	5(C+N)~0.70	N: 0.1 Max.
	S41000	0.75	11.5~13.5	0.08~0.15	1	1	0.04	0.03	-	-	-
	S43000	0.75	16.0~18.0	0.12	1	1	0.04	0.03	-	-	-
	S43932	0.5	17.0~19.0	0.03	1	1	0.04	0.03	-	-	N: 0.03 Max. Al: 0.15 Max. Nb+Ti = [ 0.20 + 4 ( C + N ) ] ~ 0.75

Mechanical Property (For Reference)

ASTM Specification
	Steel Grade	N/mm 2 MIN. Tensile Stress	N/mm 2 MIN. Proof Stress	% MIN. Elongation	HRB MAX. Hardness	HBW MAX. Hardness	Bendability: Bending Angle	Bendability: Inside Radius
Spec. ASTM A240	S30100	515	205	40	95	217	No Require	-
	S30400	515	205	40	92	201	No Require	-
	S30403	485	170	40	92	201	No Require	-
	S31008	515	205	40	95	217	No Require	-
	S31603	485	170	40	95	217	No Require	-
	S32100	515	205	40	95	217	No Require	-
	S41000	450	205	20	96	217	180°	-
	S43000	450	205	22A	89	183	180°	-
